Description

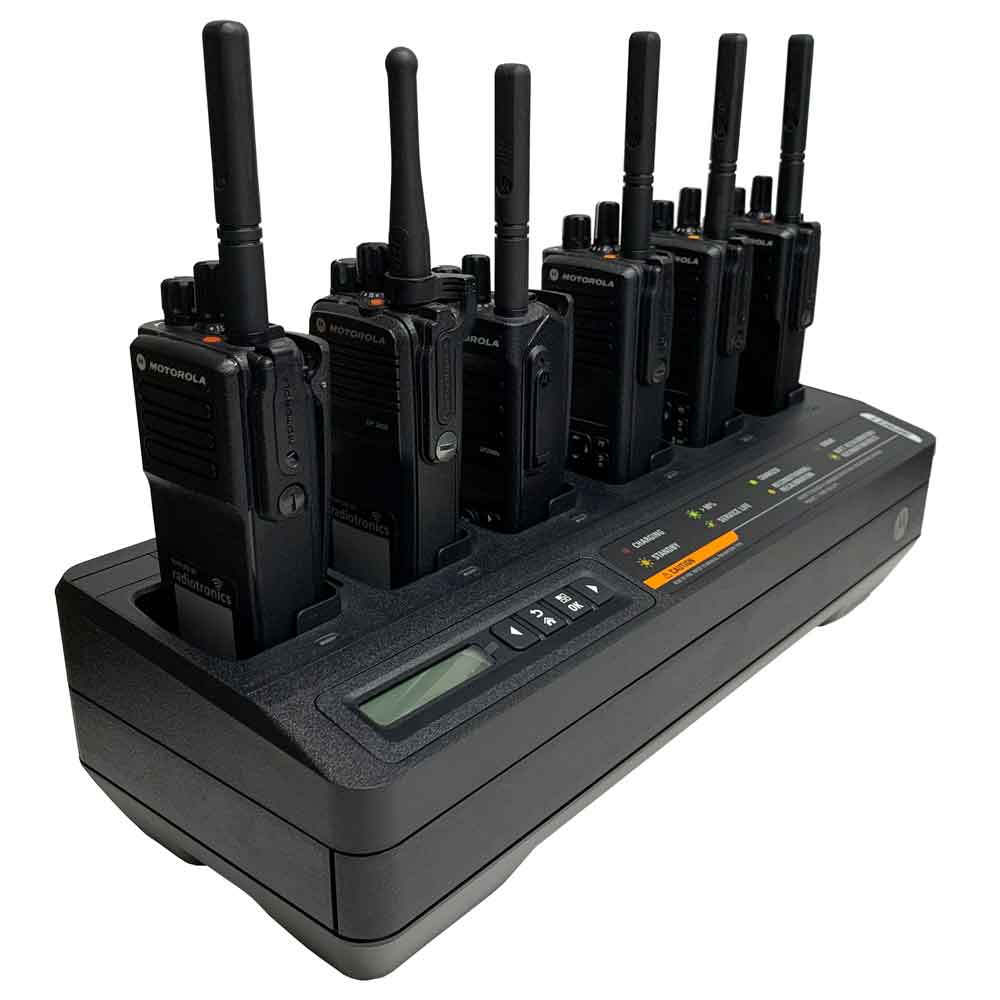

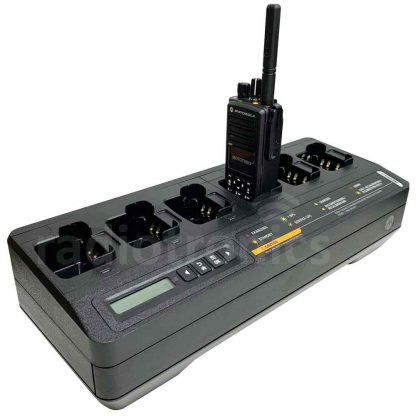

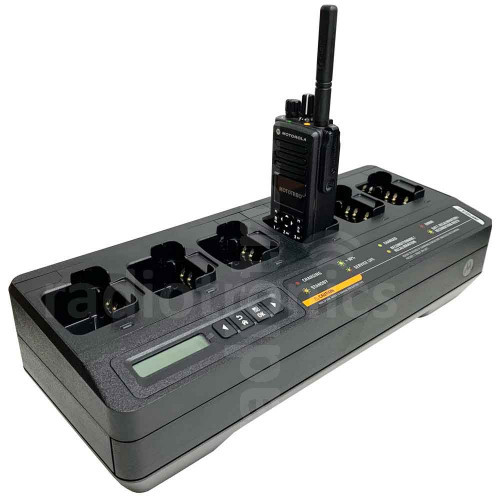

Motorola PMPN4293 (PMPN4293A) is an IMPRES V2 6-way charger with power supply included, compatible with all MOTOTRBO DP4 series two-way radios. See compatible models below. Power supply and mains power cord included.
Like it’s predecessors (WPLN4215 and WPLN4222) the all new Motorola PMPN4293 IMPRES v2 multi-unit charger has pockets that accommodate either a radio with attached battery or a stand-alone battery to keep a battery charged at all times.
Motorola PMPN4293 Features
Motorola PMPN4293A is a fully automated IMPRES 2 (read more about IMPRES here) battery care system that is equipped with additional features:
- Adaptive charging to accommodate a wide variety of battery types, including IMPRES 2, IMPRES, and other genuine Motorola Solutions batteries
- Communications Interface built-in for charger reprogramming, IMPRES battery data upload to an IMPRES Battery Fleet Management System (Sold Separately) and iTM communication; through USB hub
- Keypad menu allows charger setup and basic battery analysis
- Information Display – shows battery status
- Energy Efficiency Features – the charger pockets will automatically sleep, then wake to respond to user activities, or to service a battery in the pocket
- Preparation of a battery for long-term storage
- Preparation of a Lithium-ion battery for shipment. There are additional advantages when charging an IMPRES 2 Lithium-ion battery with an IMPRES 2 Adaptive Charger: • Faster charging than IMPRES and Non IMPRES chargers
- Extended life cycle
Switch off when charging: It is important to note that you should never switch the radio on while in the charger. Doing so risks damaging the battery, radio or both.
Motorola PMPN4293 Includes
- Motorola PMPN4283 Charger Base
- Motorola HW001384A01 Charger Triple Pocket (x2, Already Fitted)
- Motorola PS000242A01 Power Supply
- Motorola 3087791G10 Mains Power Cord (Unavailable, replaced by Straight IEC Power Cord With A/NZ Plug)
Motorola PMPN4293 Compatible Radios
- DP2000 Series: DP2400e & DP2600e
- DP4000 Series: DP4400e, DP4401e, DP4600e, DP4601e, DP4800e, DP4801e
- DP4000 Ex (ATEX) Series: DP4401Ex, DP4801Ex
- MTP8000 (TETRA/ATEX) Series: MTP8000Ex
- APX 1000 Series
- APX 2000 Series
- APX 3000 Series
- APX 4000 Series
Note: PMPN4293 is not suitable for the DP3441e, DP3661e. These radios require PMPN4301 6-way charger.
Motorola PMPN4293 Compatible Batteries
- NNTN7789 IMPRES IECEx IP67 Li-Ion Battery
- NNTN8128 IMPRES Li-Ion Battery
- NNTN8129 High-Capacity IMPRES IP67 Li-Ion FM Battery
- NNTN8287 IMPRES CSA 157 IP67 Li-Ion Battery
- NNTN8305 IMPRES Li-Ion Battery
- NNTN8359 IMPRES IECEx/ATEX IP67 Li-Ion Battery
- NNTN8386 IMPRES CSA 157 Li-Ion Battery
- NNTN8560 IMPRES IP67 TIA4950 Li-Ion Battery
- NNTN8570 IMPRES IECEx/ATEX IP67 Li-Ion Battery
- NNTN8750 IMPRES CSA IP67 Li-Ion Battery
- NNTN8840 IMPRES IECEx IP67 Li-Ion Battery
- PMNN4065 Ni-MH Battery
- PMNN4066 IMPRES Li-Ion Battery
- PMNN4069 IMPRES Li-Ion FM Battery
- PMNN4077 High-Capacity IMPRES Li-Ion Battery
- PMNN4101 IMPRES IP57 Li-Ion Battery
- PMNN4102 IMPRES IP57 Li-Ion FM Battery
- PMNN4103 High-Capacity IMPRES IP57 Li-Ion Battery
- PMNN4104 IP57 Ni-MH Battery
- PMNN4262 Ultra High-Capacity IMPRES IP57 Li-Ion Battery
- PMNN4406 IP68 Li-Ion Battery
- PMNN4407 IMPRES IP68 Li-Ion Battery
- PMNN4409 High-Capacity IMPRES IP68 Li-Ion Battery
- PMNN4412 IP58 Ni-MH Battery
- PMNN4415 IP56 Ni-MH Battery
- PMNN4416 IP56 Li-Ion Battery
- PMNN4417 IMPRES IP56 Li-Ion Battery
- PMNN4418 High-Capacity IMPRES IP56 Li-Ion Battery
- PMNN4424 High-Capacity IMPRES Li-Ion Battery
- PMNN4435 IP68 Li-Ion Battery
- PMNN4448 High-Capacity IMPRES IP67 Li-Ion Battery
- PMNN4463 IP68 Li-Ion Battery
- PMNN4488 IMPRES IP68 HE DENS Li-Ion Battery (For Vibrating Belt Clip)
- PMNN4489 IMPRES IP68 TIA4950 HE DENS Li-Ion Battery
- PMNN4490 IMPRES IP68 TIA4950 HE DENS Li-Ion Battery
- PMNN4491 IMPRES IP68 Li-Ion Battery
- PMNN4493 IMPRES IP68 HE DENS Li-Ion Battery
- PMNN4525 IMPRES IP68 Li-Ion Battery
- PMNN4543 IP68 Li-Ion Battery
- PMNN4544 High-Capacity IMPRES IP68 Li-Ion Battery
